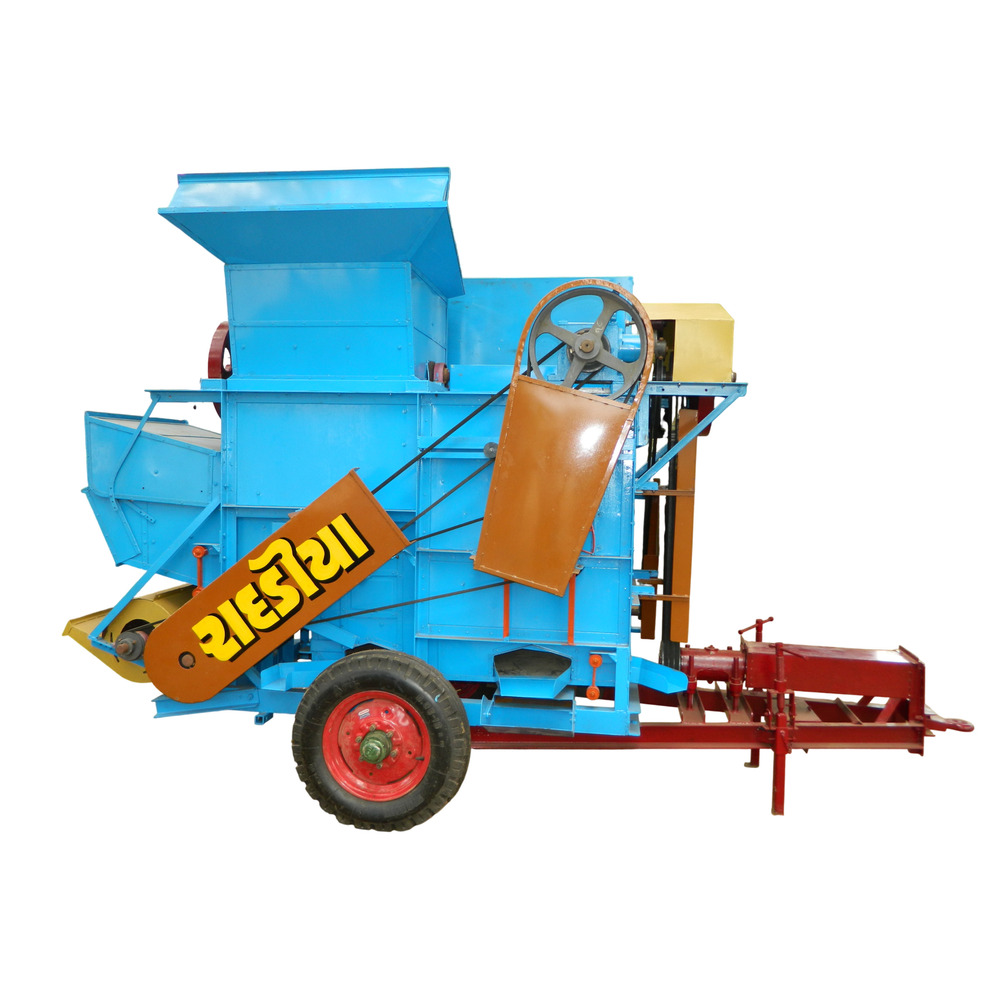

Groundnut With Conveyor Belt Thresher Machine

Get a Price/Quote

Product Details:

Shape Rectangular frame with feed conveyor and discharge outlet
Usage & Applications Used for threshing groundnut crop in agricultural farms and processing units
Tool Type Threshing, Cleaning, and Conveyor
Noise Level Moderate (complies with standard norms)
Features Automatic feeding with conveyor, high-grade separation, low grain breakage, robust construction, easy mobility
Product Type Automatic Agricultural Machinery
General Use Threshing groundnuts and separating seeds from pods efficiently
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Groundnut With Conveyor Belt Thresher Machine Price And Quantity

Minimum Order Quantity 1 Unit

Groundnut With Conveyor Belt Thresher Machine Product Specifications

Power Source Electric Motor or Tractor PTO
Power 7.5 HP - 10 HP
General Use Threshing groundnuts and separating seeds from pods efficiently
Type Groundnut Thresher with Conveyor Belt
Disc Diameter Large drum with heavy-duty threshing pegs
Color Blue & Silver
Features Automatic feeding with conveyor, high-grade separation, low grain breakage, robust construction, easy mobility
Noise Level Moderate (complies with standard norms)
Capacity 1800-2000 kg/hr (approx.)
Weight (kg) 1200 kg (approx.)
Dimension (L*W*H) 3500 x 1700 x 2000 mm (approx.)
Drive Type Belt Drive
Fuel Tank Capacity Not Applicable (Electric/Tractor Driven)
Usage & Applications Used for threshing groundnut crop in agricultural farms and processing units
Tool Type Threshing, Cleaning, and Conveyor
Shape Rectangular frame with feed conveyor and discharge outlet
Material Mild Steel (MS) body with alloy internal parts
Start Method Electric Start or Tractor PTO engagement
Product Type Automatic Agricultural Machinery
Transmission Type Gear & Belt Combination
Machine Speed 600-900 RPM (variable)
Production Output High output; consistent separation and cleaning
Engine Type Tractor PTO or Electric Motor

Sieves Multiple sieve sizes available for different groundnut varieties
Input Hopper Size Wide mouth with anti-spillage guards
Conveyor Length Approx. 2.5 meters for continuous feeding
Mobility Easily towable by tractor
Adjustability Threshing clearance adjustable as per crop variety
Wheels Heavy-duty wheels for easy transportation
Cleaning System Integrated blower for efficient cleaning
Chassis Rugged single-frame steel chassis for stability
Hourly Fuel/Energy Consumption Approx. 2 to 3 units (electric); negligible in PTO mode
Maintenance Grease nipples at moving joints for easy maintenance
Safety Features Shielded moving parts and emergency stop switch

Groundnut With Conveyor Belt Thresher Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 20 Unit Per Month
Delivery Time 2-10 Days
Main Domestic Market All India

Product Description

Experience incomparable efficiency with the best-seller Groundnut With Conveyor Belt Thresher Machine. Outfitted with a wide 2.5-meter conveyor belt for instant checkout and continuous feeding, this machine boasts excellent seed separation and cleaning thanks to an integrated blower. Its stellar performance is complemented by robust, mobile design-add to cart for easy transportation with heavy-duty wheels. Adjustable threshing clearance, multiple sieves, shielded safety features, and high hourly output (up to 2000 kg/hr) make it perfect for large-scale agricultural applications. Choose between electric motor or tractor PTO for versatile power sourcing. Maintenance is effortless and safety uncompromised, making it the ideal solution for groundnut threshing.

Versatile Application Across Surfaces and Spaces

The Groundnut With Conveyor Belt Thresher Machine is ideal for a variety of application areas including large agricultural farms, contract farming setups, and processing units. Suitable for both indoor and outdoor operation, it works efficiently on concrete yards, compacted earth, or prepared farm fields. Its wide-mouthed input hopper and robust wheels make it adaptable for bulk groundnut processing, regardless of the terrain or workspace size-maximizing productivity across any groundnut-handling surface.

Certifications, Sample Availability, and Supply Capabilities

Our Groundnut With Conveyor Belt Thresher Machine is manufactured under strict quality certifications, ensuring excellent durability and compliance. Samples can be arranged to estimate suitability for your needs before you commit. We maintain a reliable supply capability to handover units promptly, including secure transportation to your site across India. Orders are processed efficiently to support both individual farmers and larger suppliers, guaranteeing timely delivery and uninterrupted operation during peak harvest times.

FAQ's of Groundnut With Conveyor Belt Thresher Machine:

Q: How does the integrated cleaning system improve groundnut processing?

A: The integrated blower system ensures efficient removal of debris and impurities during threshing, resulting in cleaner groundnut seeds and reducing the need for secondary cleaning steps.

Q: What steps are involved in operating this thresher machine?

A: Simply load groundnut pods into the wide-mouth hopper, select the appropriate sieve size, engage power via electric motor or tractor PTO, and the conveyor belt automates feeding while shielded components keep the process safe and streamlined.

Q: When should maintenance be performed on the machine?

A: Routine maintenance-such as greasing moving joints and inspecting the chassis-should be performed after every major use or during scheduled downtimes to ensure optimal longevity and performance.

Q: Where can this machine be transported and set up?

A: Its heavy-duty wheels and towable chassis allow you to relocate the thresher easily across farms, warehouses, or processing yards, and it performs reliably on varied surfaces from fields to paved areas.

Q: What benefits does the adjustable threshing clearance provide?

A: Adjustable threshing clearance lets you fine-tune the machine for different groundnut varieties, ensuring high efficiency and minimal seed loss regardless of pod size or crop condition.
